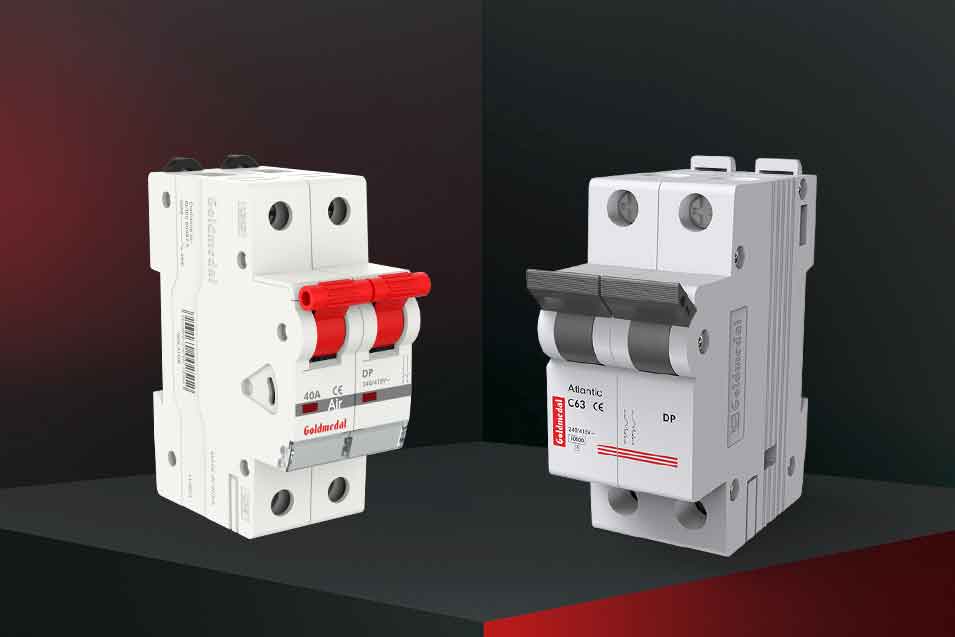

MCB vs Isolator: Understanding Differences and Uses
21st March 2026 | Written By: Rika Aash | Read Time: 3min | Last Updated: 21st March 2026
With the rise in electrical hazards, safety and reliability have become prime concerns in electrical systems. MCBs (Miniature Circuit Breakers) and isolators are commonly used electrical devices, but they serve different purposes. While both contribute to safety, their functions and applications are not the same. Let us understand the difference between the two in detail.
What is an MCB?
An MCB is designed to automatically shut off the flow of electricity in case of an overload or short circuit. When excessive current flows through a circuit, the MCB trips instantly, preventing damage to wires, appliances, or connected devices.
MCBs are widely used in residential, commercial, and industrial installations to protect individual circuits such as lighting, power sockets, or specific appliances. Once the fault is rectified, the MCB can be easily reset, making it a reliable and reusable protective device.
What is an Isolator?
An isolator is a manually operated switch used to disconnect a circuit from the power supply. Unlike an MCB, an isolator does not provide protection against overloads or short circuits. Its primary role is to ensure safety during maintenance or servicing by completely isolating a part of the electrical system.
Isolators are commonly installed for equipment such as air conditioners, motors, heavy machinery, and industrial equipment, where safe disconnection is required before repair or servicing. They are operated only when the circuit is not carrying load.
Difference Between MCB and an Isolator
| MCB | Isolator |
|---|---|
| Automatically trips during overloads or short circuits | Manually disconnects power for maintenance |
| Designed to interrupt current under load | Not meant to break load current |
| Uses thermal or magnetic mechanisms to trip | Creates a visible break in the circuit |
| Protects circuits from electrical faults | Ensures safety during servicing |
Uses of MCB and an Isolator
In a typical home distribution board, MCBs are installed for individual circuits to provide protection against electrical faults. An isolator is usually used as the main switch to disconnect the entire power supply when required.
In commercial and industrial setups, MCBs protect machinery and equipment from faults, while isolators are used to safely disconnect systems before maintenance or repair work begins.
Conclusion
Both MCBs and isolators play important roles in an electrical system, but they are used for different purposes. An MCB protects circuits from electrical faults, while an isolator ensures safe disconnection during maintenance. Using them correctly at appropriate locations enhances safety and improves the reliability of electrical installations. Understanding their differences helps in making informed decisions while upgrading or designing electrical systems.
Frequently Asked Questions (FAQs) :
-
Q1. What is the main difference between an MCB and an isolator?
The main difference between an MCB and an isolator is that an MCB automatically trips during overloads or short circuits to protect the circuit, while an isolator is used only to manually disconnect power for maintenance or safety purposes and does not provide automatic protection.
-
Q2. Can an isolator provide protection against short circuits?
No, an isolator cannot provide protection against short circuits. It only disconnects the power supply manually and does not detect or interrupt faults like overloads or short circuits.
-
Q3. What is the purpose of an isolator in an electrical system?
The purpose of an isolator in an electrical system is to safely disconnect the power supply during maintenance, repairs, or emergencies, ensuring that equipment and circuits are completely de-energised.
-
Q4. Is an isolator used as a main switch?
Yes, an isolator is often used as a main switch to manually disconnect the entire electrical supply, but it does not offer protection against overloads or short circuits.
-
Q5. Can an MCB be used as an isolator?
Yes, an MCB can be used as an isolator because it can manually disconnect the circuit, but its primary function is to provide protection against overloads and short circuits.
